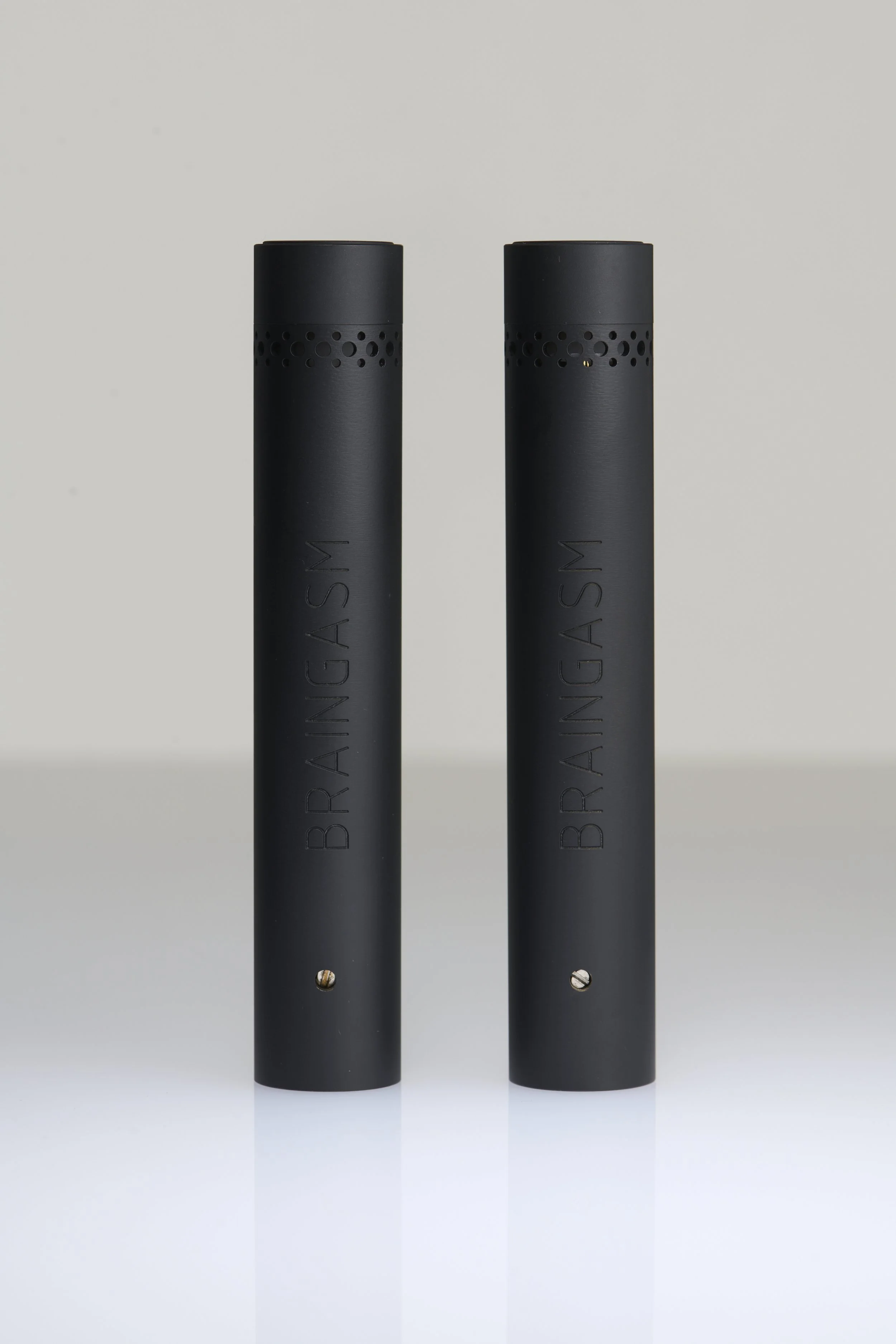

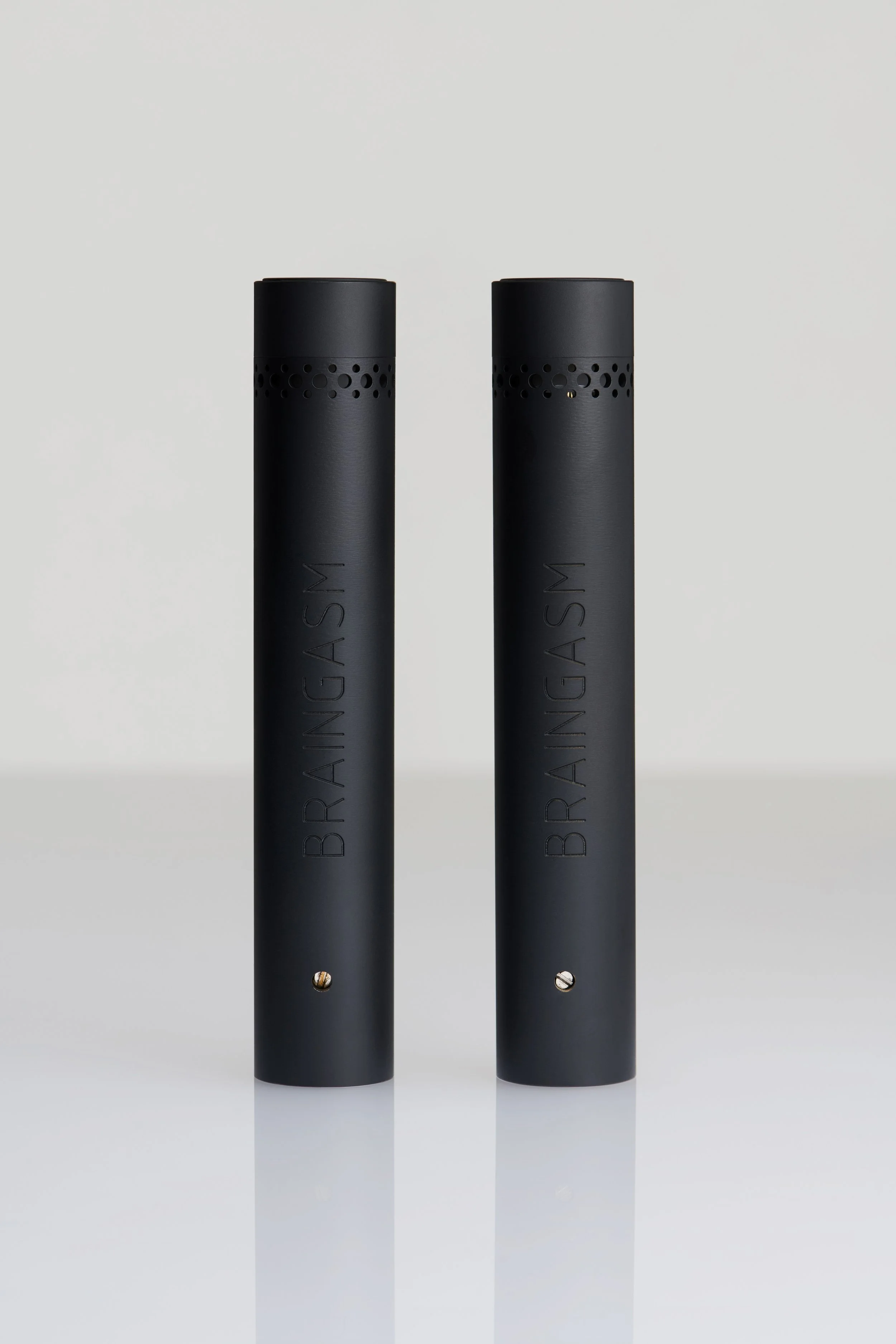

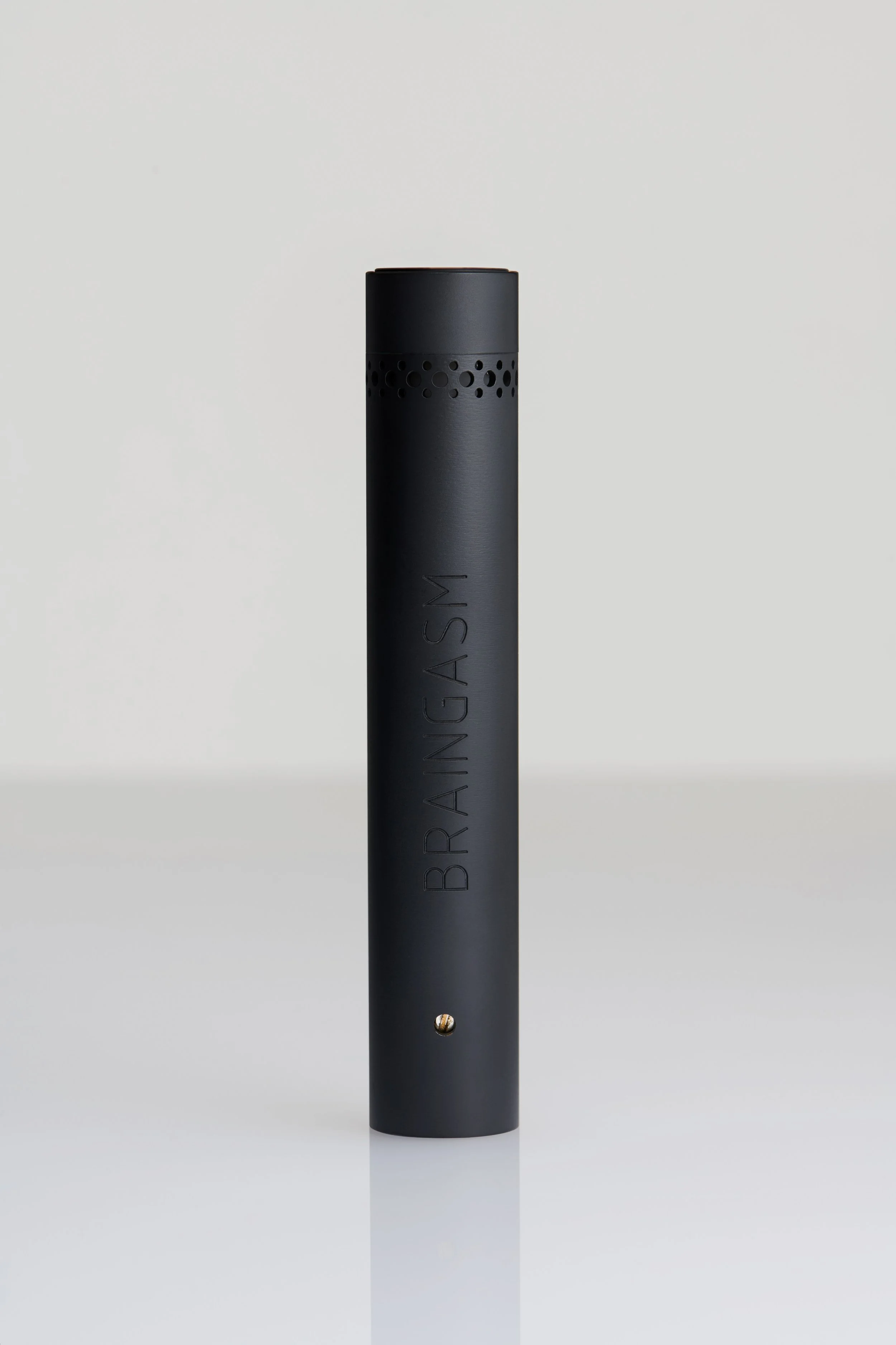

MP1 (Matched Pair)

Braingasm_MP1_Small_Diaphtagm_SDC_Studio_Instrument_Condenser_MicrophoneBraingasm_MP1_Small_Diaphtagm_SDC_Studio_Instrument_Condenser_Microphone_3.jpg
Braingasm_MP1_Small_Diaphtagm_SDC_Studio_Instrument_Condenser_MicrophoneBraingasm_MP1_Small_Diaphtagm_SDC_Studio_Instrument_Condenser_Microphone_3.jpg
sale

MP1 (Matched Pair)

from €920.00

SMALL DIAPHRAGM CONDENSER MICROPHONE

INDIVIDUAL / MATCHED PAIR w/ QUICK STEREO MOUNTS

Mounting system:
Quantity:
Add To Cart

OVERVIEW

The MP1 excels in applications like acoustic instruments, drum overheads, and orchestral recordings.

Its advanced capsule technology, hand skinned and matched in pairs, offers a balanced yet rich tonal quality, while its high sensitivity and low self-noise make it ideal for delicate performances and subtle nuances.

The combination of a carefully tuned capsule and the acoustic impact of the circular body vents has been engineered to minimize off-axis bleed, delivering a perfect cardioid polar pattern with a flat, non-hyped frequency response. This design avoids the harsh high-frequency content typical of modern small-diaphragm condensers, while its exceptional signal-to-noise ratio and high headroom provide clear, undistorted output for any audio application.

Perfectly suited for both studio and live environments, the MP1 delivers a natural, transparent sound with a smooth and pleasant frequency response. Its cardioid polar pattern ensures outstanding directivity, capturing the desired sound source while minimizing unwanted ambient noise.

The microphone’s rugged, solid brass body is built to withstand the rigors of professional use, yet remains lightweight for easy handling and placement in tight spaces.

TECHNICAL SPECIFICATIONS

  • Acoustic Principle: Pressure gradient transducer

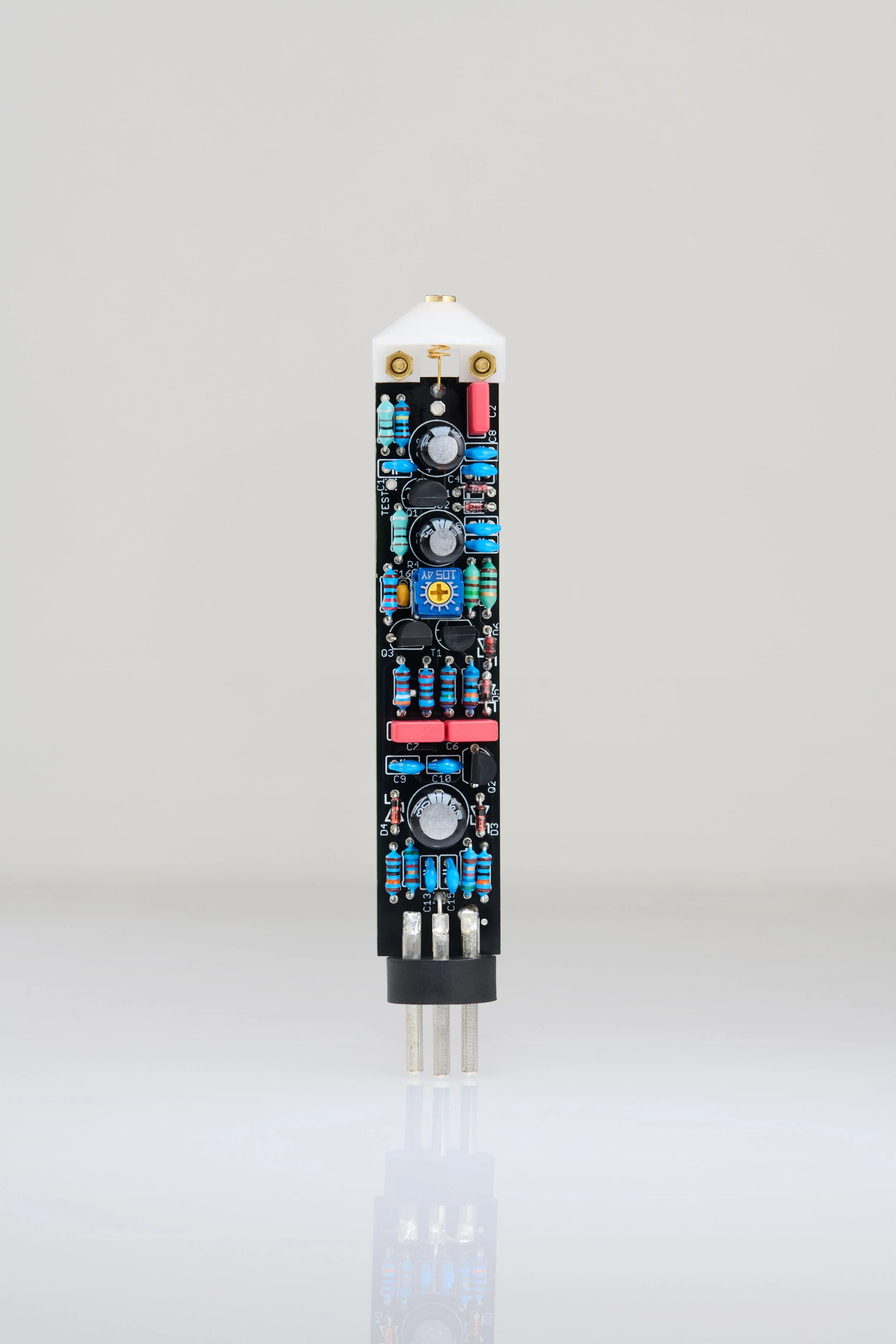

  • Active Electronics: Low-noise JFET input stage, Class-A Push-Pull BJT output stage

  • Directional Pattern: Cardioid

  • Frequency Range: 20 Hz – 20,000 Hz

  • Capsule Sensitivity at 1 kHz: -36 dB/Pa (16 mV)

  • Self-Noise: 13 dB (A-weighted)

  • Signal-to-Noise Ratio: 81 dB (A-weighted)

  • Dynamic Range: 120 dB

  • Maximum SPL: 133 dB (for 0.5% THD)

  • Maximum Input Level (electrical): 870 mV

  • Maximum Output Level: 1.3 V

  • Rated Output Impedance: 50 Ω

  • Physical Dimensions: Diameter: 22 mm

  • Housing Finish: Cerakote finish, solid brass body

  • Made in Italy

ACCESSORIES

  • Wooden case

  • Mounting clips

  • XY stereo pair mounting system (optional)

  • ORTF stereo pair mounting system (optional)



SOUND SAMPLES
